Gridfinity compatible

Bench BrassModular Storage System

Cases, trays and bins on one grid.

Build yoursSee the catalog

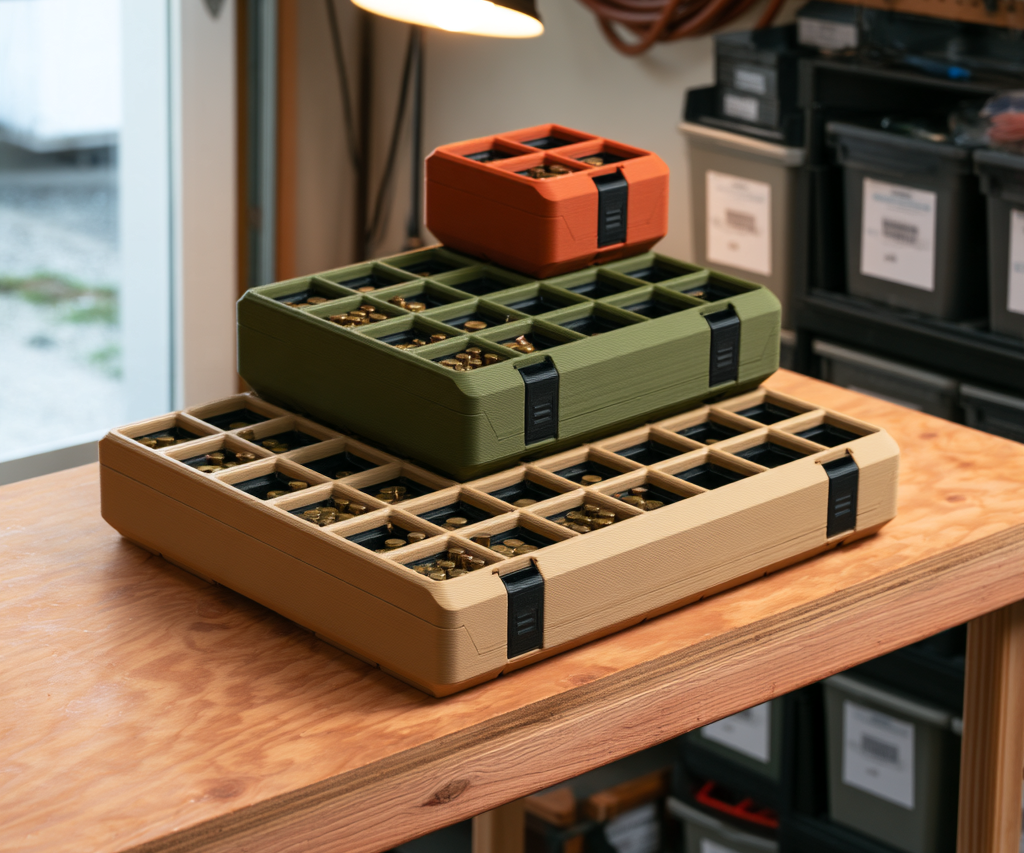

Bench Brass Range, Day and Pocket cases stacked on a garage shelf, in Army Beige, Army Green and Burnt Orange

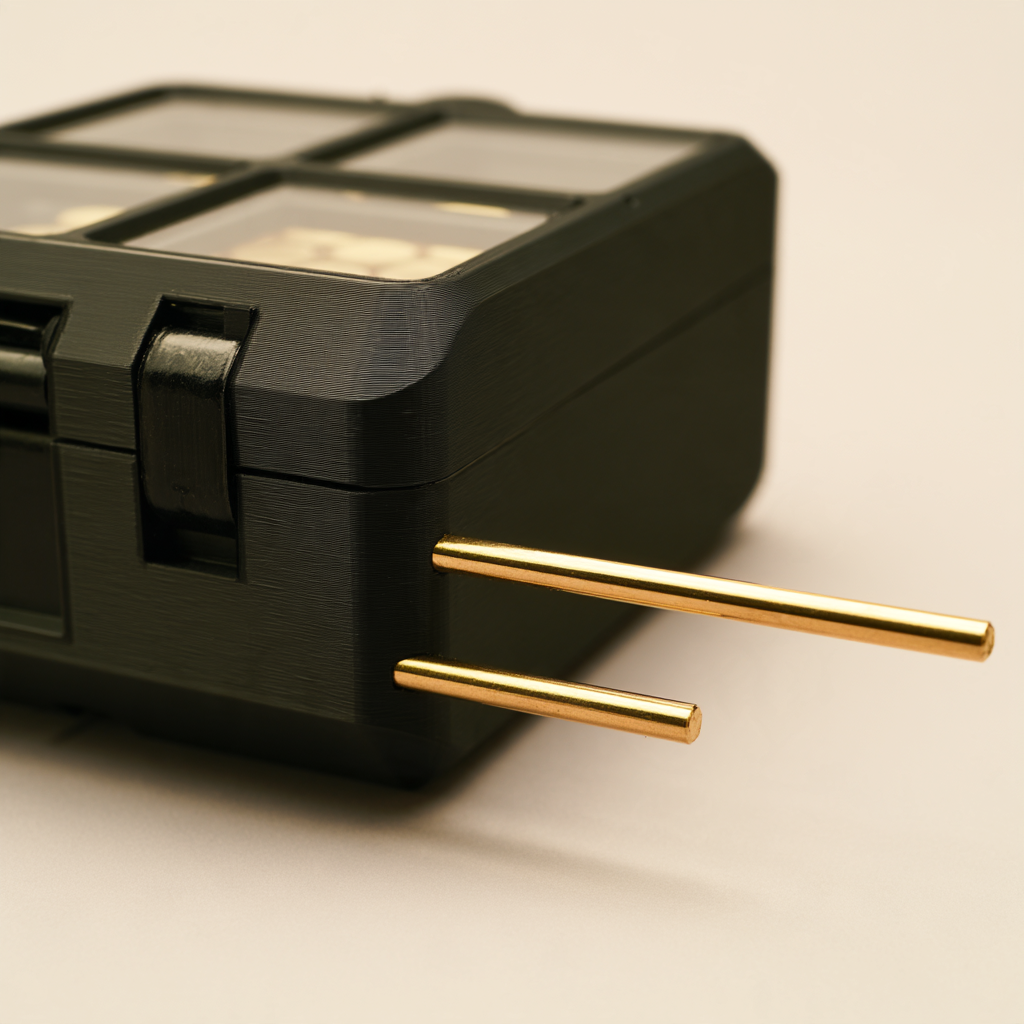

The hinge end of a black Pocket case, two brass hinge pins drawn part-way out of their bores

The hinge

The hinge pin is brass.

The case is designed around filament hinge pins. Ours come out, and brass rod goes in.

Ø 1.5 mm brass rod

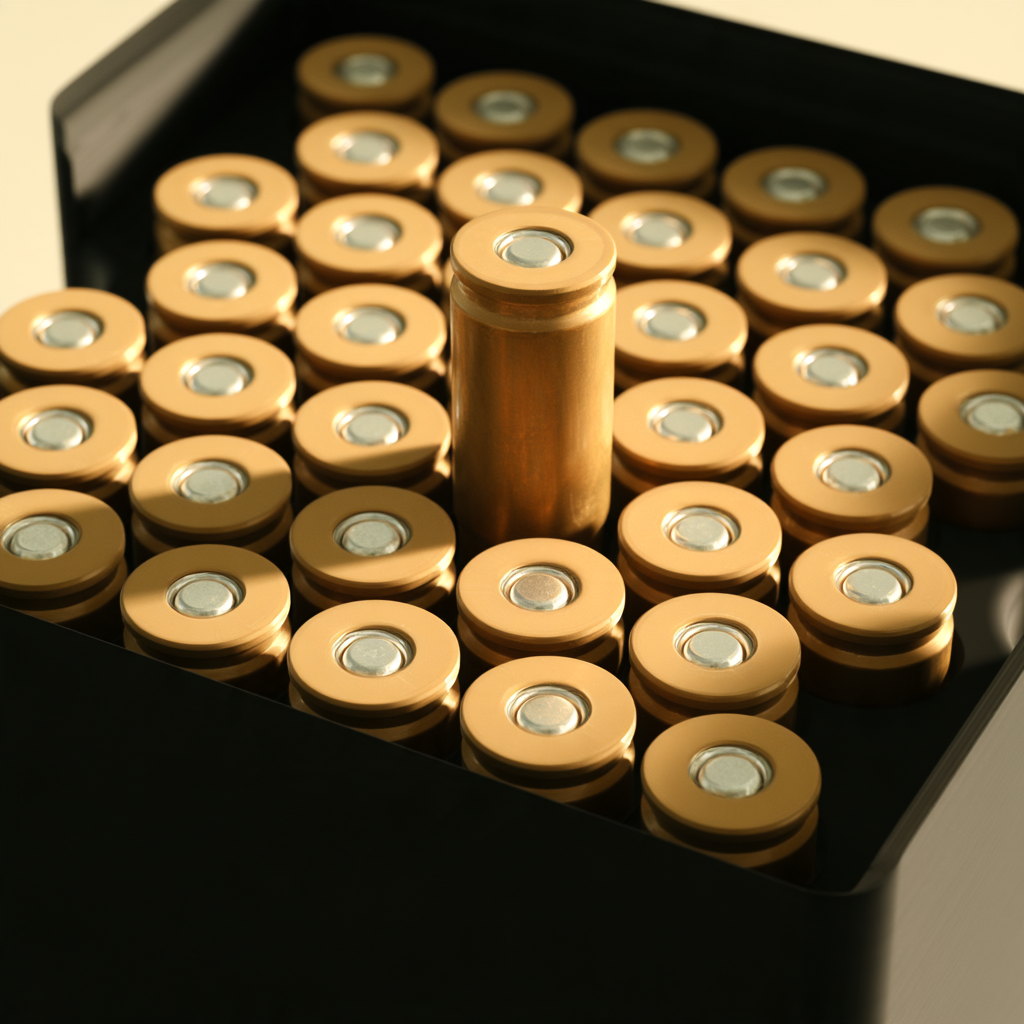

Headcount 9×19 tray, loaded, the brass case heads standing proud of the hex field, one round lifted part-way out

Headcount trays

Heads stand 5 mm proud.

A 2×2 tray holds 39 rounds of 9×19 standing in a centered hex. The heads sit 5 mm above the field, so a round can be picked out with gloves on.

Generated from SAAMI/CIP published dimensions.

39 rounds · 9×19 · heads 5.00 mm proud

Specs

The same parts, every size.

One filament, brass at the hinge, acrylic in the lid — whichever case, tray or bin you buy.

Material High-temp PLA
Hinge pin Ø 1.5 mm brass rod
Latch and links Printed, turning on brass rod
Lid window 1.60 mm acrylic
Cases 2×2, 4×5 and 6×7

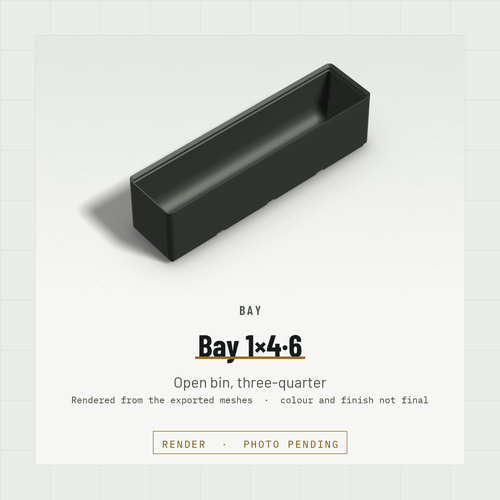

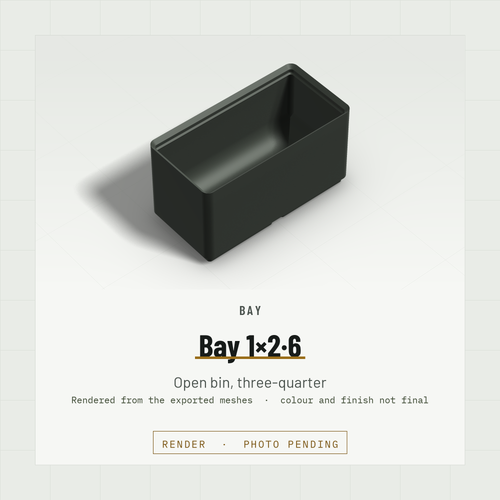

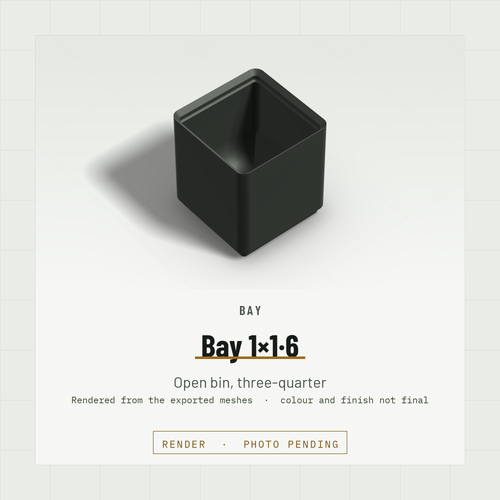

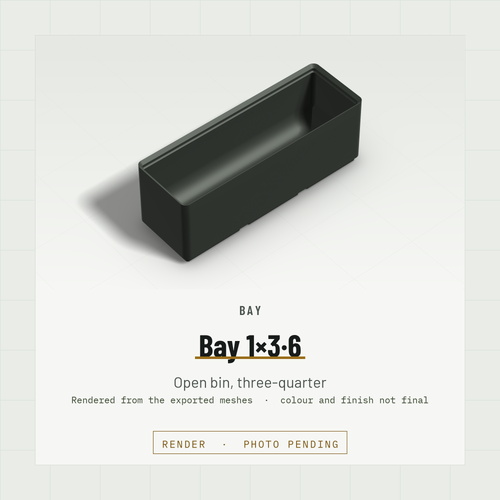

Trays and bins 1×1 up to 4×4
Calibers 9×19 and 7.62×25
Fit Gridfinity compatible
Ships Within the United States
